Lined Pipe & Fittings

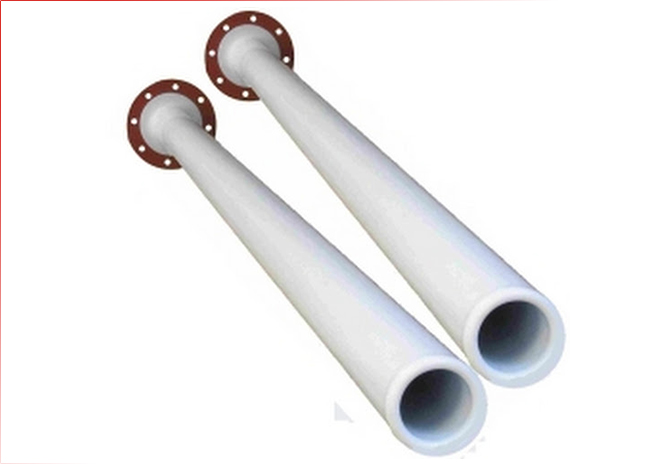

Dip Pipe

Size : SIZE AS PER CUSTOMER REQ.
Flange : ASTM A 105
Pipe : ASTM A 106 Gr. B SCH-40
Lining : PTFE CONFORMING ASTM D-4895 / 4894
ALL DIMENTION ARE IN MM
FLANGE DIMENTION AS PER ANSI B. 16.5 AND ASA 150#
Hydro Test : AT 04.0 KG/CM2 AFTER LINING
Spark Test : AT 15 KV DC AFTER HYDRO TEST
Lining Thikness : AS PER ASTM F 1545
Dimentions and Visual Check : 100%
