Lined Pipe & Fittings

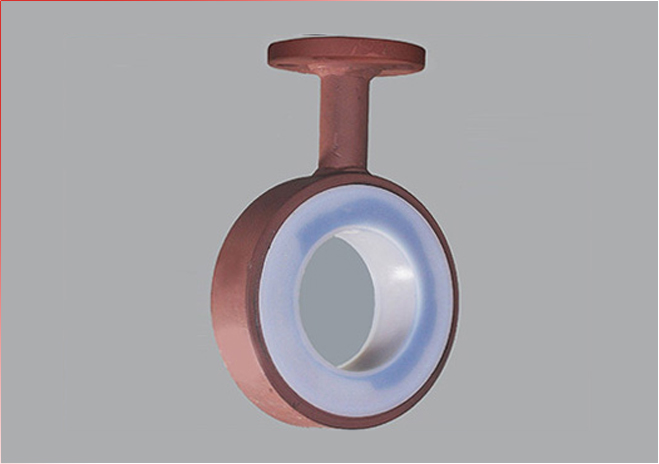

Instrument Tee

Size : AS PER DATA SHEET
Flange / Hub : ASTM A 105
Pipe : ASTM A 106 Gr. B SCH-40
Lining : PFA ASTM D- 3307, PP, PVDF, FEP, ANTISTATIC PFA, HDPE AS PER STD
ALL DIMENTION ARE IN MM
FLANGE DIMENTION AS PER ANSI B. 16.5 AND ASA 150#
Hydro Test : AT 29.0 KG/CM2 AFTER LINING
Spark Test : AT 15 KV DC AFTER HYDRO TEST
Lining Thikness : AS PER ASTM F 1545
Dimentions and Visual Check : 100%

Note :- 150 NB (6'') AND ABOVE AS PER CUSTOMER REQUEST.
