Lined Pipe & Fittings

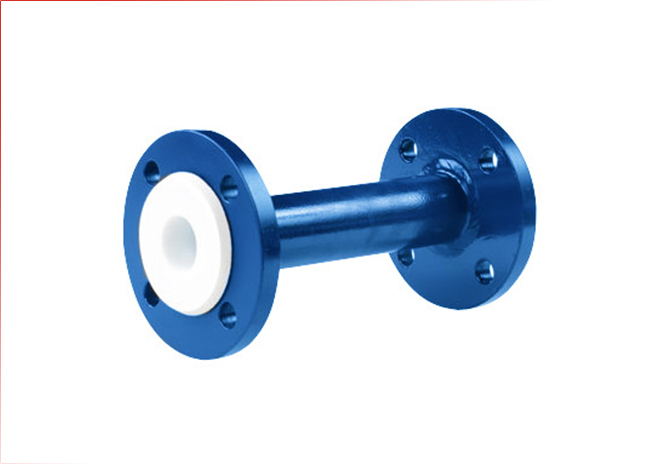

Spool Pipe

Size : 15 NB TO 300 NB
Flange / Hub : ASTM A 105 (ONE END FIX AND ONE END LOOSE FLANGE)
Pipe : ASTM A 106 Gr. B SCH-40
Lining : PTFE CONFORMING ASTM D-4895 / 4894, PP, PVDF, ANTISTATIC PTFE, HDPE AS PER STD
ALL DIMENTION ARE IN MM
FLANGE DIMENTION AS PER ANSI B. 16.5 AND ASA 150#
Hydro Test : AT 15.0 KG/CM2 AFTER LINING
Spark Test : AT 15 KV DC AFTER HYDRO TEST
Lining Thikness : AS PER ASTM F 1545
Dimentions and Visual Check : 100%
Size L
25 NB 127
40 NB 165
50 NB 178
80 NB 203
100 NB 229
150 NB 267 (GEAR BOX)
200 NB 360 (GEAR BOX)

Note :- 150 NB (6'') AND ABOVE AS PER CUSTOMER REQUEST.
