FEP/PFA Lined Valves

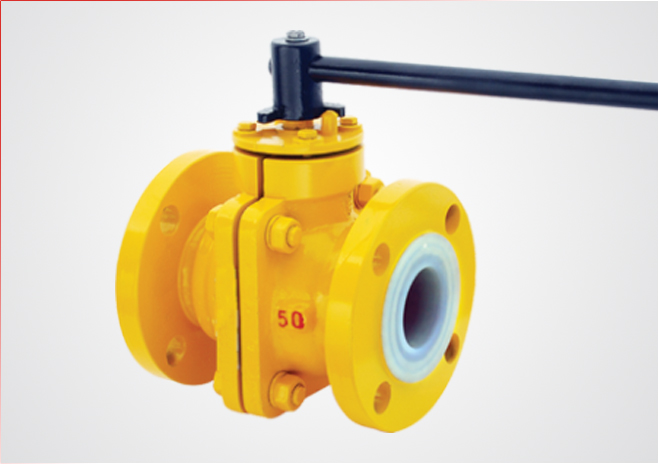

PTFE Ball Valve

Features:

Optimal surface finish
Effective regulation of flows
Precise design
Size : 15mm to 25O mm
Body : S.G.lron, WCB, CF8(SS 304) or CF8M(SS 316) Lined With FEP/PFA
Ball : ASTM A 216, WCB, CF8(SS 304) or CF8M(SS 316) Lined With FEP/PFA
Lining Material : FEP/PFA
Lining Thickness : 3 to 5 mm THK.
Design : Two Piece As per BS- 5351
Temp. Resistant : FEP :-20 to I80° PFA :-20 to 230°
Testing : Hydro Test -11 kg/cm2 to Full Vacuum as per BS/API Pneumatic Test - 7 kg/cm2 Spark Test - 15 KVA DC
F to F : As per Class 150
Flange Drilling : As per ANSI B 16.5
Body (2 Side Piece) : ASTM A395 (DI) / ASTM A 216 (WCB) / SS 304
Ball : WCB / CB7 Cu1 / CF8 /CF8M
Lining : PFA ASTM D- 3307, PP, PVDF, FEP, ANTISTIC PFA AND HDPE AS PER STD
ALL DIMENTION ARE IN MM
FLANGE DIMENTION AS PER ANSI B. 16.5 AND ASA 150#
Hydro Test Body : AT 15.0 KG/CM2 AFTER LINING
Hydro Test Seat : AT 10.0 KG/CM2 AFTER LINING
Pneumatic Test : AT 06.0 KG/CM2 AFTER LINING
Spark Test : AT 15 KV DC AFTER HYDRO TEST
Lining Thikness : AS PER ASTM F 1545
Dimentions and Visual Check : 100%
Size L
25 NB 127
40 NB 165
50 NB 178
80 NB 203
100 NB 229
150 NB 267 (GEAR BOX)
200 NB 360 (GEAR BOX)
