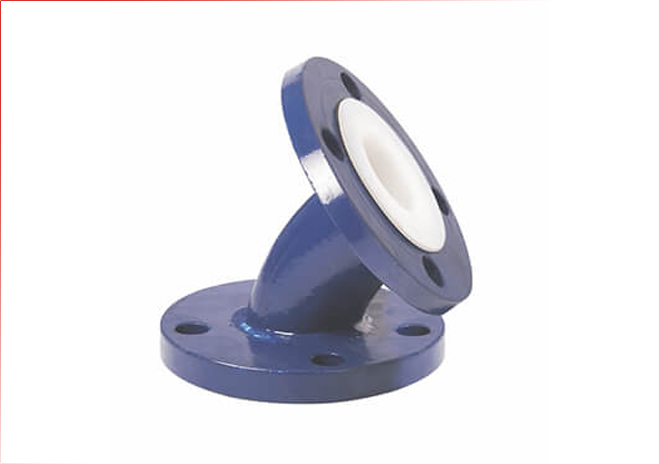

90ᵒ and 45ᵒ Elbow

Size : 15 NB TO 300 NB
Flange / Hub : ASTM A 105
Bend : ASTM A 234 Gr. WPB
Lining : PTFE CONFORMING ASTM D-4895 / 4894, PP, PVDF, ANTISTATIC PTFE, HDPE AS PER STD
ALL DIMENTION ARE IN MM
FLANGE DIMENTION AS PER ANSI B. 16.5 AND ASA 150#
Hydro Test : AT 29.0 KG/CM2 AFTER LINING
Spark Test : AT 15 KV DC AFTER HYDRO TEST
Lining Thikness : AS PER ASTM F 1545
Dimentions and Visual Check : 100%

90ᵒ ELBOW DATA SHEET

Size F ±3.0
15 NB 65
25 NB 89
40 NB 102
50 NB 115
80 NB 140
100 NB 165
150 NB 203
200 NB 228
250 NB 280
300 NB 305

45ᵒ ELBOW DATA SHEET

Size F ±3.0
15 NB 44
25 NB 45
40 NB 57
50 NB 64
80 NB 76
100 NB 102
150 NB 127
200 NB 140
250 NB 165
300 NB 190

Note :- 150 NB (6'') AND ABOVE AS PER CUSTOMER REQUEST.
