FEP/PFA Lined Valves

PRODUCT LIST

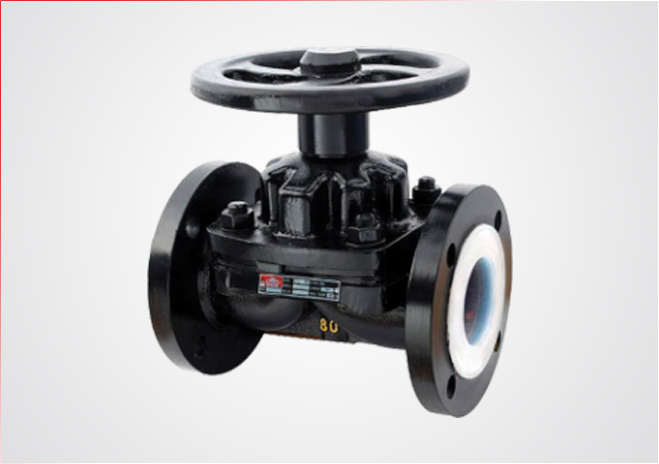

PTFE Diaphragm Valve

Features:

Excellent design
Exceptional performance
Longer service life
Size : 25mm to 250 mm
Body : S.G.lron, WCB, CF8(SS 304) or CF8M(SS 316) Lined With FEP/PFA
Bonnet : S.G.Iron
Diaphragm(Pin Type) : PTFE Backed by Neoprene Rubber
Lining Material : FEP/PFA Lining Thickness - 3 to 5 mm THK.
Design : Two Piece As per BS- 5156
Temp. Resistant : FEP :-20 to I80° PFA :-20 to 230°
Testing : Hydro Test -11 kg/cm2 to Full Vacuum as per BS/API Pneumatic Test - 7 kg/cm2 Spark Test - 15 KVA DC
F to F : As per Class 150
Flange Drilling : As per ANSI B 16.5
Body : ASTM A395 (DI) / ASTM A 216 (WCB)
Diaphragm : PTFE
Lining : PFA ASTM D- 3307, PP, PVDF, FEP, ANTISTIC PFA AND HDPE AS PER STD
ALL DIMENTION ARE IN MM
FLANGE DIMENTION AS PER ANSI B. 16.5 AND ASA 150#
Hydro Test Body : AT 28.0 KG/CM2 AFTER LINING
Pneumatic Test : AT 06.0 KG/CM2 AFTER LINING
Spark Test : AT 15 KV DC AFTER HYDRO TEST
Lining Thikness : AS PER ASTM F 1545
Dimentions and Visual Check : 100%
Size L
25 NB 127
40 NB 159
50 NB 190
80 NB 254
100 NB 305
150 NB 406
