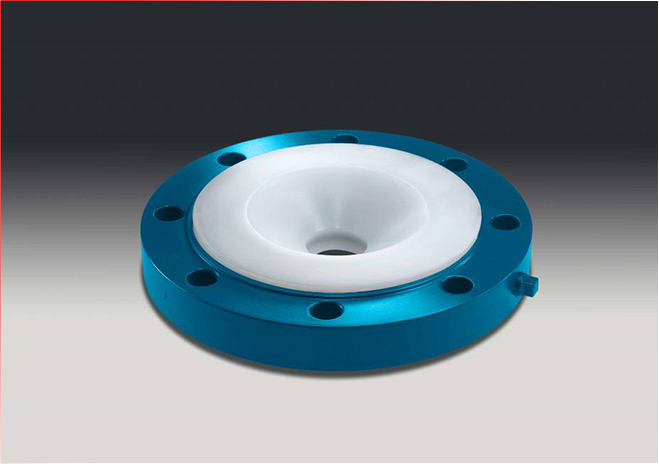

Red. Flange

Size : AS PER DATA SHEET
Flange / Hub : IS 2062 (FABRICATED) / ASTM A 395 (DI) / ASTM A 216 (WCB)
Bend : ASTM A 234 Gr. WPB
Lining : PTFE CONFORMING ASPFA ASTM D- 3307 PP, PVDF, FEP, ANTISTATIC PFA AND HDPE AS PER STD
ALL DIMENTION ARE IN MM
FLANGE DIMENTION AS PER ANSI B. 16.5 AND ASA 150#
Hydro Test : AT 29.0 KG/CM2 AFTER LINING
Spark Test : AT 15 KV DC AFTER HYDRO TEST
Lining Thikness : AS PER ASTM F 1545
Dimentions and Visual Check : 100%

RED. FLANGE DATA SHEET

SIZE 1 (NB) SIZE 2 (NB) F ±3.0
50 25 40
50 40 40
80 25 52
80 40 52
80 50 52
100 25 53
100 40 53
100 50 53
100 80 53
150 40 63
150 50 63
150 80 63
150 100 63
200 40 66
200 50 66
200 80 66
200 100 68.5
200 150 68.5
250 40 70.5
250 50 70.5
250 80 70.5
250 100 72
250 150 72
250 200 72
300 50 73
300 80 73
300 100 73
300 150 73
400 150 76
400 200 76
