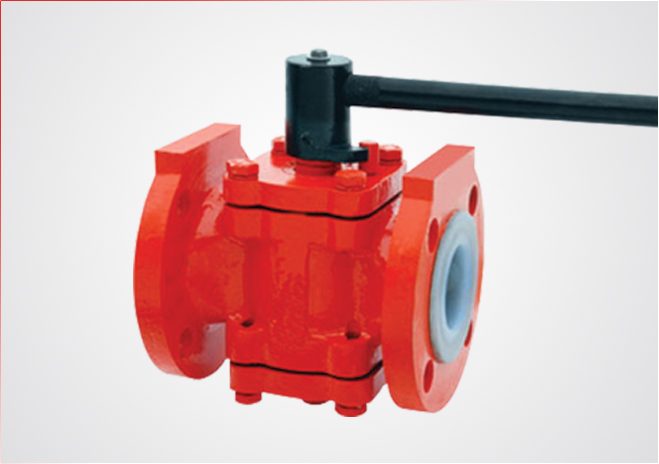

PTFE Plug Valve
Features:
Full Flow Efficiency.
Bubble tight shut off.
Single piece design for zero leakage.
Low torque & maintenance free.
Size | : | 15mm to 25O mm |
Body | : | S.G.lron, WCB, CF8(SS 304) or CF8M(SS 316) Lined With FEP/PFA |
Plug | : | ASTM A 216, WCB, CF8(SS 304) or CF8M(SS 316) Lined With FEP/PFA |
Lining Material | : | FEP/PFA |
Lining Thickness | : | 3 to 5 mm THK. |
Design | : | Single As per BS- 5351 |
Temp. Resistant | : | FEP :-20 to I80° PFA :-20 to 230° |
Testing | : | Hydro Test -11 kg/cm2 to Full Vacuum as per BS/API Pneumatic Test - 7 kg/cm2 Spark Test - 15 KVA DC |
F to F | : | As per Class 150 |
Flange Drilling | : | As per ANSI B 16.5 |
Body (2 Side Piece) | : | ASTM A395 (DI) / ASTM A 216 (WCB) / SS 304 |
Plug | : | WCB / CB7 Cu1 / CF8 /CF8M |
Lining | : | PFA ASTM D- 3307, PP, PVDF, FEP, ANTISTIC PFA AND HDPE AS PER STD |
ALL DIMENTION ARE IN MM
FLANGE DIMENTION AS PER ANSI B. 16.5 AND ASA 150#
Hydro Test Body | : | AT 15.0 KG/CM2 AFTER LINING |
Hydro Test Seat | : | AT 10.0 KG/CM2 AFTER LINING |
Pneumatic Test | : | AT 06.0 KG/CM2 AFTER LINING |
Spark Test | : | AT 15 KV DC AFTER HYDRO TEST |
Lining Thikness | : | AS PER ASTM F 1545 |
Dimentions and Visual Check | : | 100% |
Size | L |
---|---|
25 NB | 127 |
40 NB | 165 |
50 NB | 178 |
80 NB | 203 |
100 NB | 229 |
150 NB | 267 (GEAR BOX) |
200 NB | 360 (GEAR BOX) |
