Lined Pipe & Fittings

PRODUCT LIST

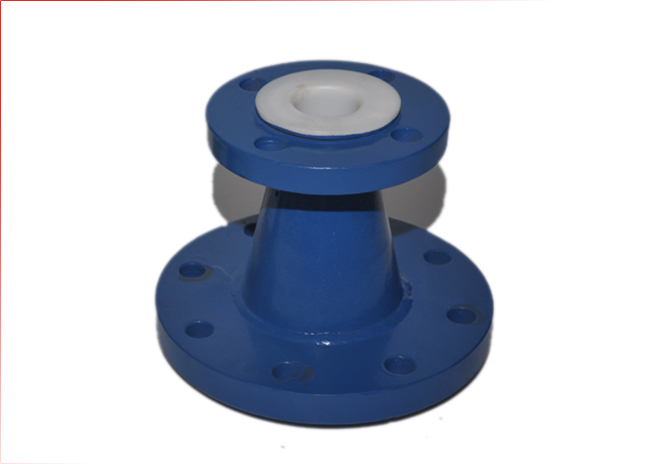

PTFE Conc. Reducer

Size : AS PER DATA SHEET
Flange / Hub : ASTM A 105 / ASTM A 395 (DI) / ASTM A 216 (WCB)
Sheel : ASTM A 234 Gr. WPB
Lining : PTFE CONFORMING ASPFA ASTM D- 3307 PP, PVDF, FEP, ANTISTATIC PFA AND HDPE AS PER STD
ALL DIMENTION ARE IN MM
FLANGE DIMENTION AS PER ANSI B. 16.5 AND ASA 150#
Hydro Test : AT 29.0 KG/CM2 AFTER LINING
Spark Test : AT 15 KV DC AFTER HYDRO TEST
Lining Thikness : AS PER ASTM F 1545
Dimentions and Visual Check : 100%

RED. FLANGE DATA SHEET

SIZE 1 (NB) SIZE 2 (NB) F ±3.0
40 25 114
50 40 127
65 40 140
65 50 140
80 40 152
80 50 152
80 65 152
100 80 178
125 100 203
150 100 229
150 125 229
200 150 279
250 200 305

Note :- 150 NB (6'') AND ABOVE AS PER CUSTOMER REQUEST.
