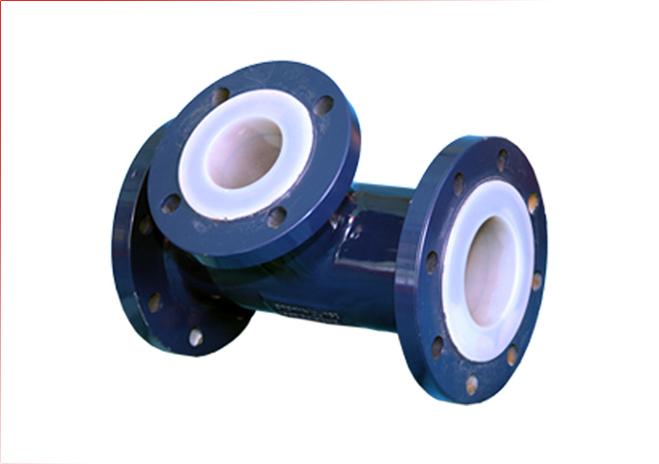

Un Equal Tee
Size | : | AS PER DATA SHEET |
Flange / Hub | : | ASTM A 105 / ASTM A 395 (DI) / ASTM A 216 (WCB) |
Pipe | : | ASTM A 106 Gr. B SCH-40 |
Lining | : | PFA ASTM D- 3307, PP, PVDF, FEP, ANTISTATIC PFA, HDPE AS PER STD |
ALL DIMENTION ARE IN MM
FLANGE DIMENTION AS PER ANSI B. 16.5 AND ASA 150#
Hydro Test | : | AT 29.0 KG/CM2 AFTER LINING |
Spark Test | : | AT 15 KV DC AFTER HYDRO TEST |
Lining Thikness | : | AS PER ASTM F 1545 |
Dimentions and Visual Check | : | 100% |
UN EQUAL TEE DATA SHEET
SIZE 1 (NB) | SIZE 2 (NB) | F ±3.0 |
---|---|---|
25 | 15 | 89 |
40 | 25 | 102 |
50 | 25 | 115 |
50 | 40 | 115 |
65 | 50 | 127 |
65 | 40 | 127 |
80 | 25 | 140 |
80 | 40 | 140 |
80 | 50 | 140 |
80 | 65 | 140 |
100 | 25 | 165 |
100 | 40 | 165 |
100 | 50 | 165 |
100 | 80 | 165 |
150 | 40 | 203 |
150 | 50 | 203 |
150 | 80 | 203 |
150 | 100 | 203 |
200 | 50 | 228 |
200 | 80 | 228 |
200 | 100 | 228 |
200 | 150 | 228 |
250 | 80 | 279 |
250 | 100 | 279 |
250 | 150 | 279 |
250 | 200 | 279 |
Note :- 150 NB (6'') AND ABOVE AS PER CUSTOMER REQUEST.
