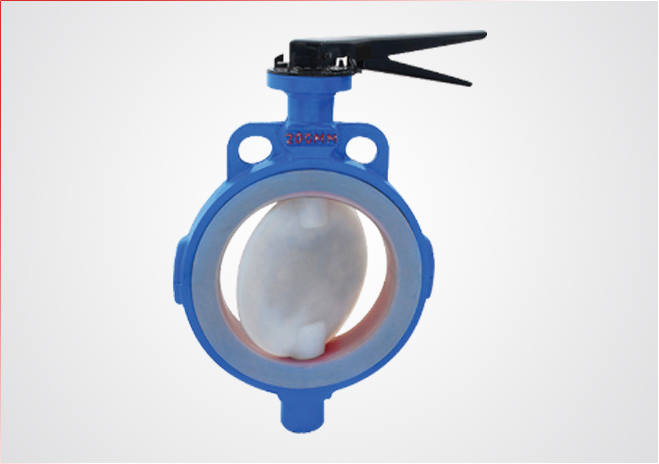

PTFE Butterfly Valve
Features:
Efficient
Longer functional life
Excellent resistance properties
Size | : | 50mm to 450 mm. |
Body | : | S.G.lron, WCB, CF8(SS 304) or CF8M(SS 316) Lined With FEP/PFA |
Body Seat (Sleeve) I Lining | : | FEP/PFA 50mm to 200mm above 200mm PTFE. |
Flapper | : | ASTM A 351 GR. CF 8 (S.S. 304). ASTM A 351 GR. CF 8M (S.S. 316) ASTM A216, WCB |
Flapper Lining Material | : | FEP/PFA. Lining Thickness: - 3 to 5 mm THK. |
Design | : | Two Piece As per BSEN E: API |
Temp. Resistant | : | FEP :-20 to I80° PFA :-20 to 230° |
Testing | : | Hydro Test -11 kg/cm2 to Full Vacuum as per BS/API Pneumatic Test - 7 kg/cm2 Spark Test - 15 KVA DC |
F to F | : | As per Class 150 |
Features:
Compact Design.
Fully flow control in quarter turn operation.
Bidirectional 100% tight shut off.
Suitable for mounting.
Not require any type of gasket packing to install.
Both shaft mounted in bearing supports for easy operating torque.
Body | : | ASTM A395 (DI) / ASTM A 216 (WCB) |
Flapper | : | WCB / CB7 Cu1 / CF8 /CF8M |
Lining (Sleeve and Flapper) | : | PFA ASTM D- 3307 |
ALL DIMENTION ARE IN MM
FLANGE DIMENTION AS PER ANSI B. 16.5 AND ASA 150#
Hydro Test Body | : | AT 11.0 KG/CM2 AFTER LINING |
Pneumatic Test | : | AT 07.0 KG/CM2 AFTER LINING |
Spark Test | : | AT 15 KV DC AFTER HYDRO TEST |
Lining Thikness | : | AS PER ASTM F 1545 |
Dimentions and Visual Check | : | 100% |
Size | L | F |
---|---|---|
50 NB | 265 | 43 |
65 NB | 265 | 46 |
80 NB | 265 | 46 |
100 NB | 350 | 52 |
125 NB | 350 | 56 |
150 NB | 430 | 56 |
200 NB | 430 | 60 |
250 NB | Gear Box | 68 |
300 NB | Gear Box | 78 |
350 NB | Gear Box | 78 |
